Update to the latest version of FL Studio before installing. This script relies on the latest version of the FL for some functionality and using an older version may cause errors or prohibit the script from working altogether.
Download script from the github by clicking the green code button and downloading the zip file
Unzip file and place in %userprofile%\Documents\Image-Line\FL Studio\Settings\Hardware
Build a layout at midicontrol.cc following the guide provided in the Manual
Place layout data in config_layout.py file
In FL Studio, open Settings - MIDI.

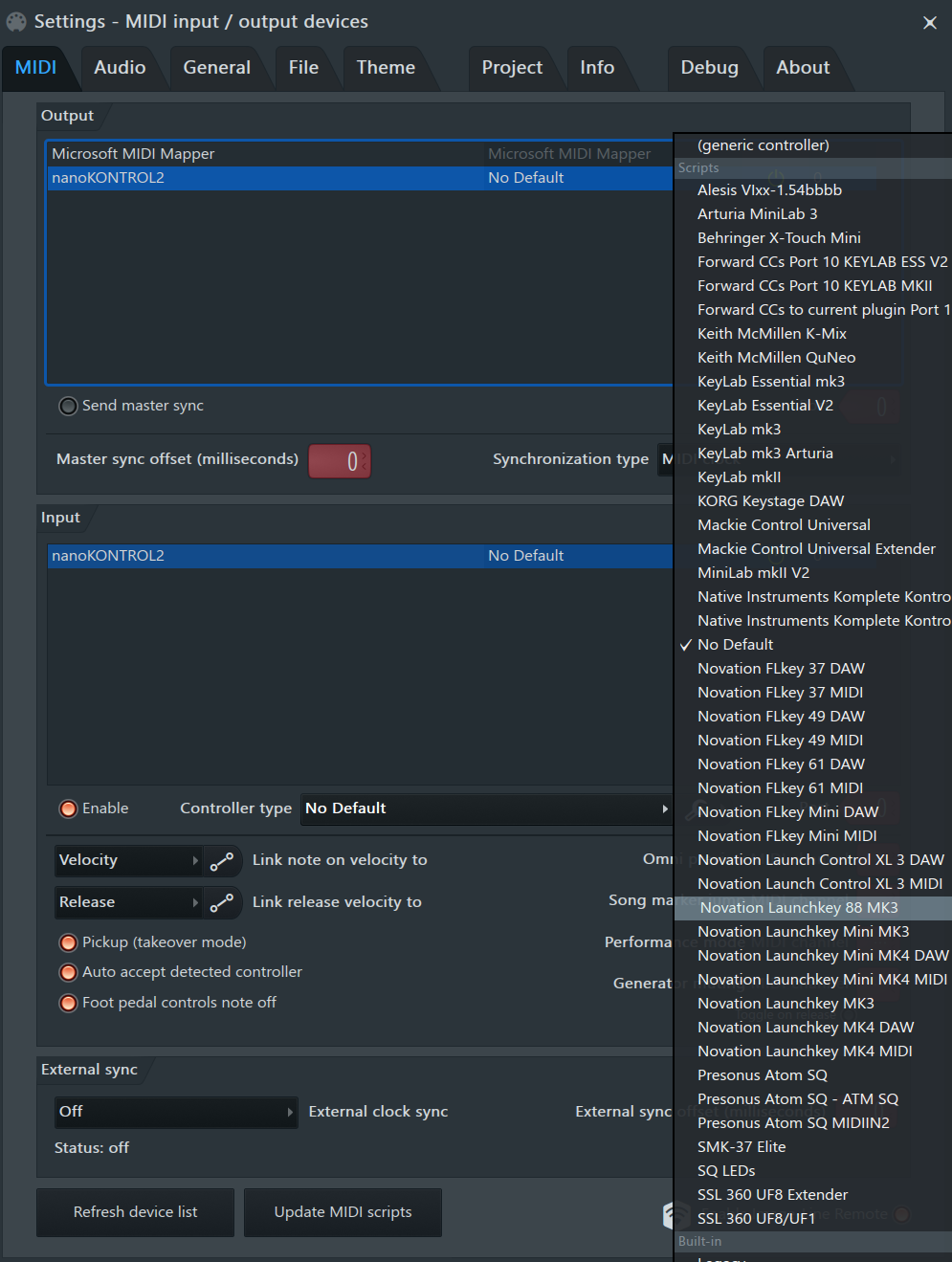

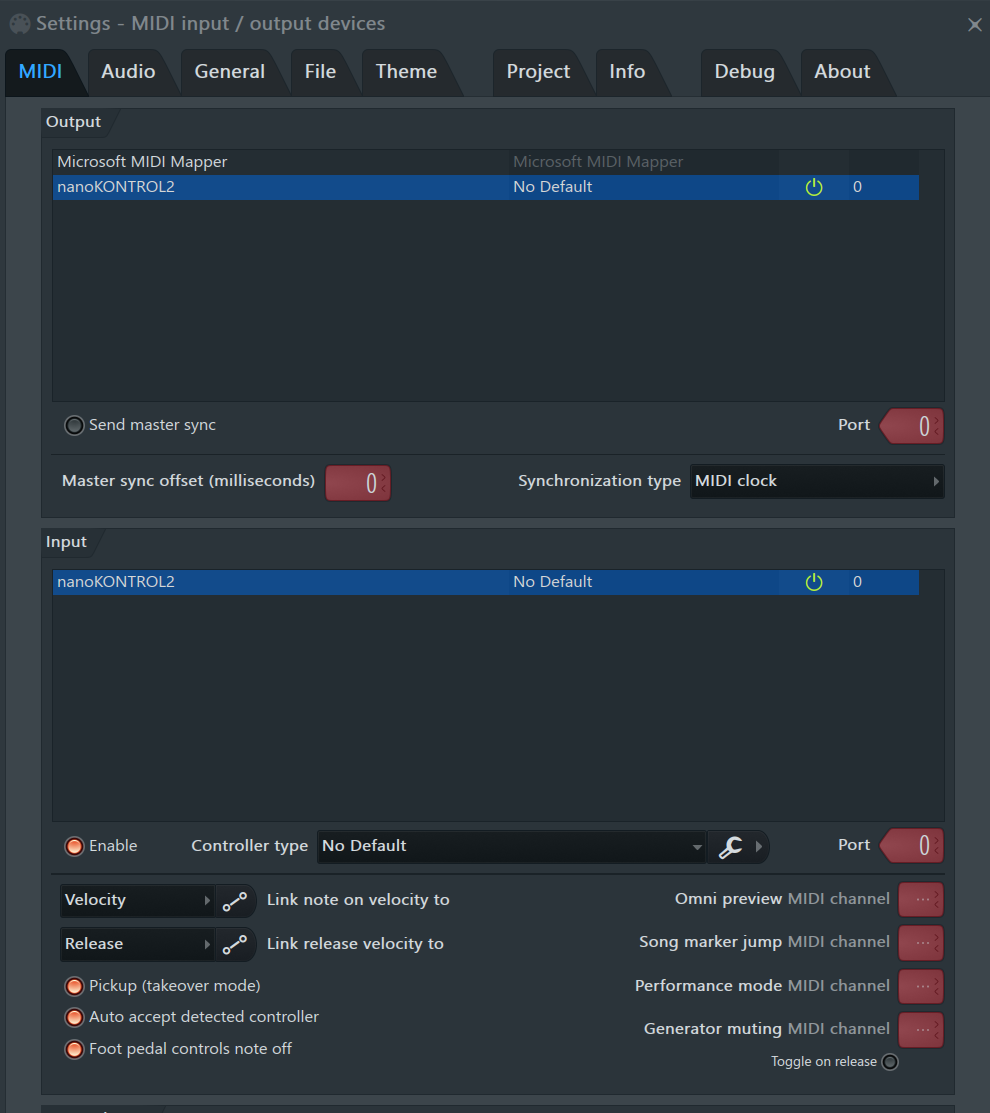

Select your controller in the Input section and, under Controller Type, select No Default
Select a port for the controller. Any port number will work. Set the output port to the same number as the import
See images below for reference:
If the controller does not work, open View - Script Output to check for error messages. If seeking assitance with issues, include some of the output. Assistance can be found at either at the Image Line forum or the YouTube video comment section for this script.

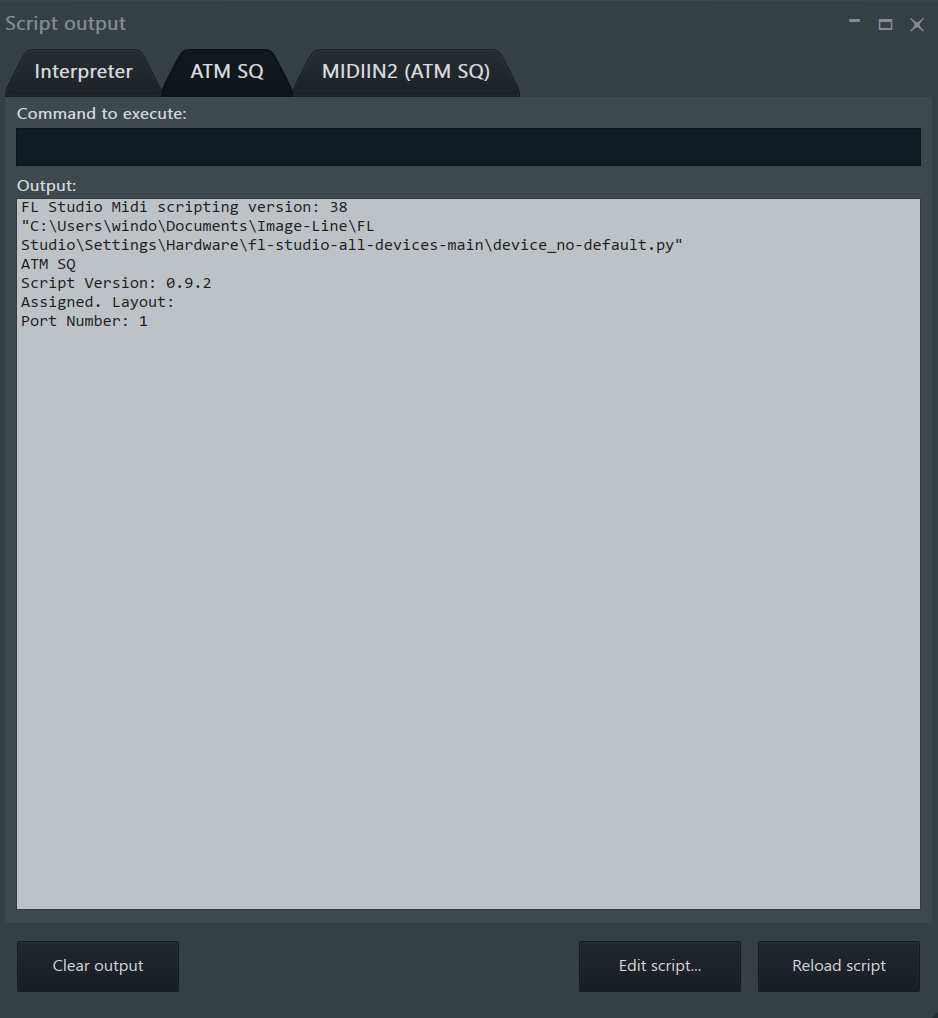

The Script Output should look similar to the image below when it has loaded correctly.
Please do not hesitate to ask for assitance if you have issues setting up the script.
